5 PIN CONNECTORS

Brand: 1STec

Features:

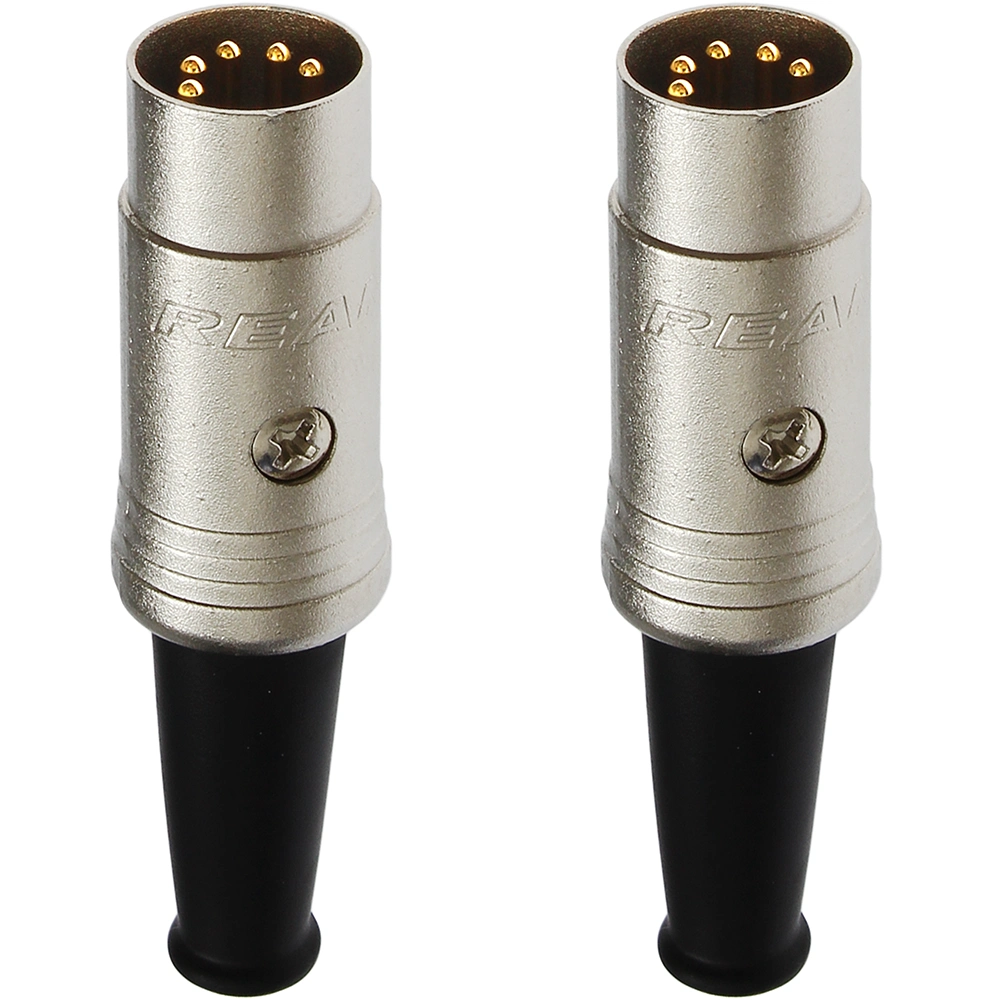

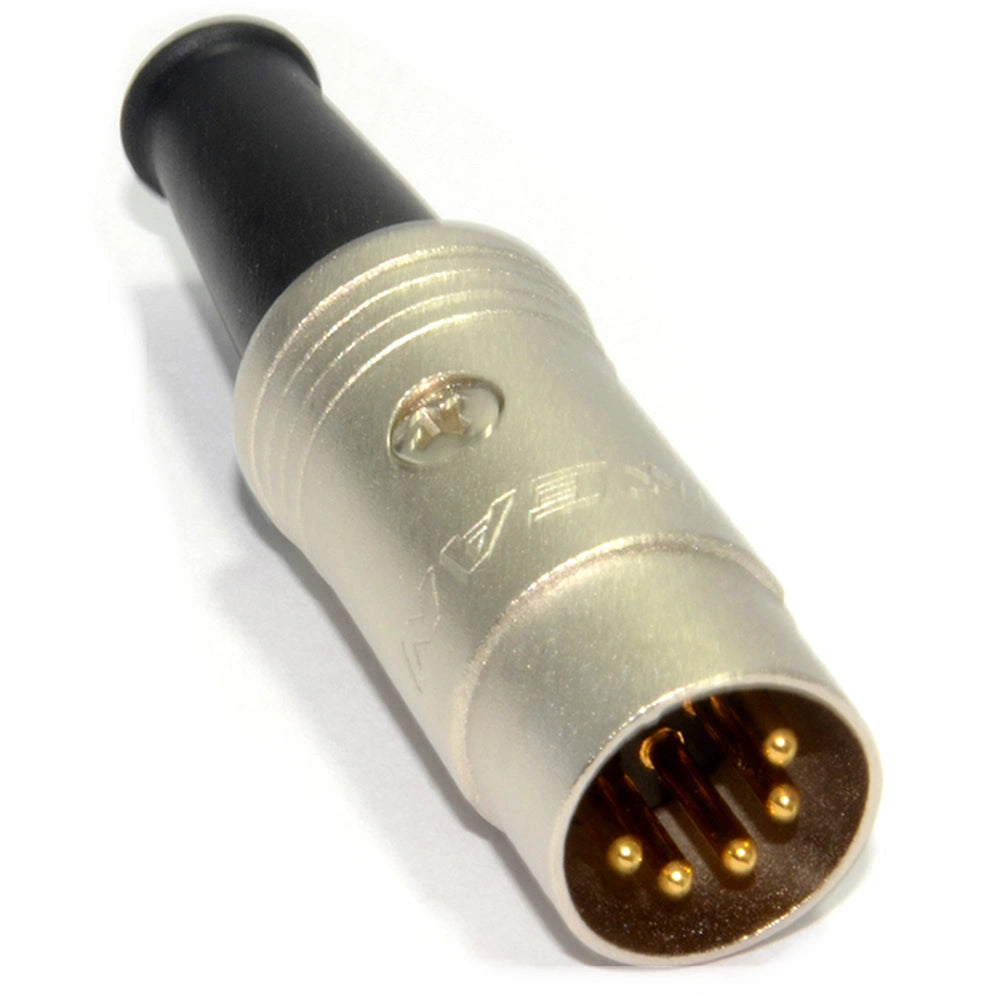

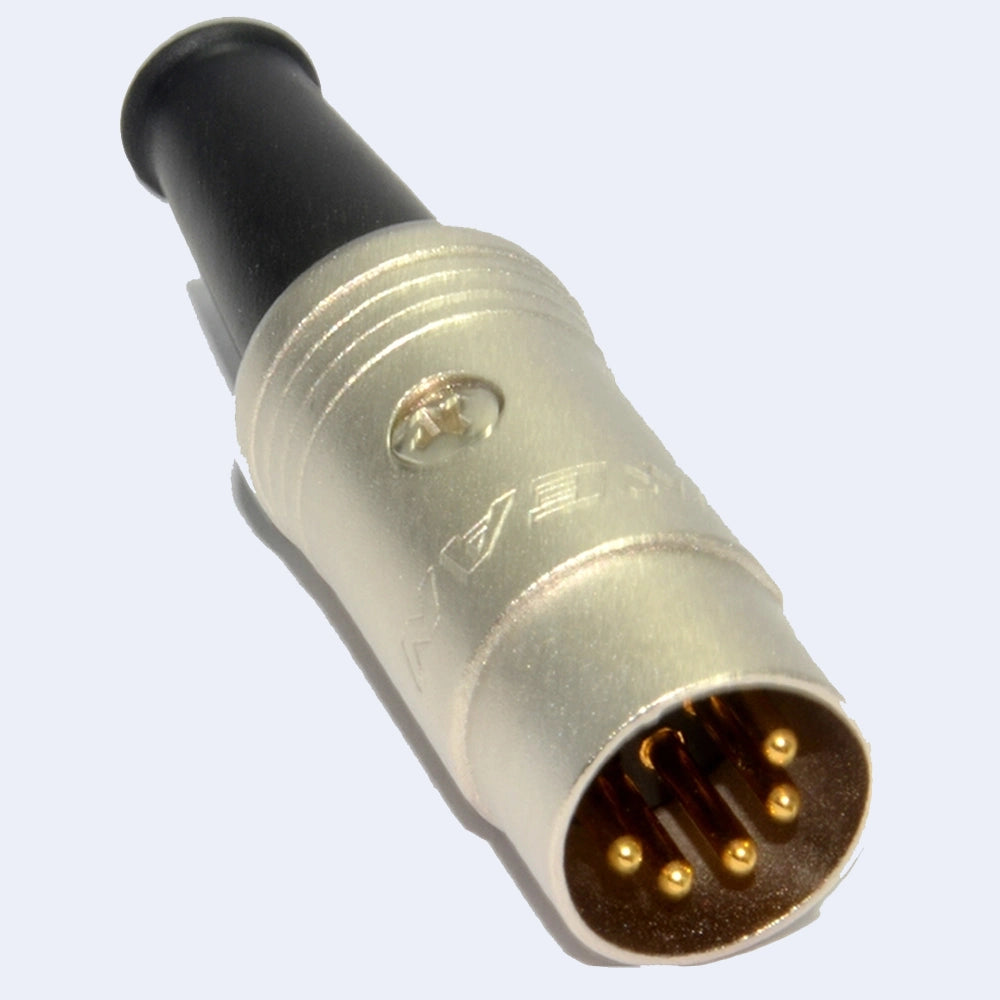

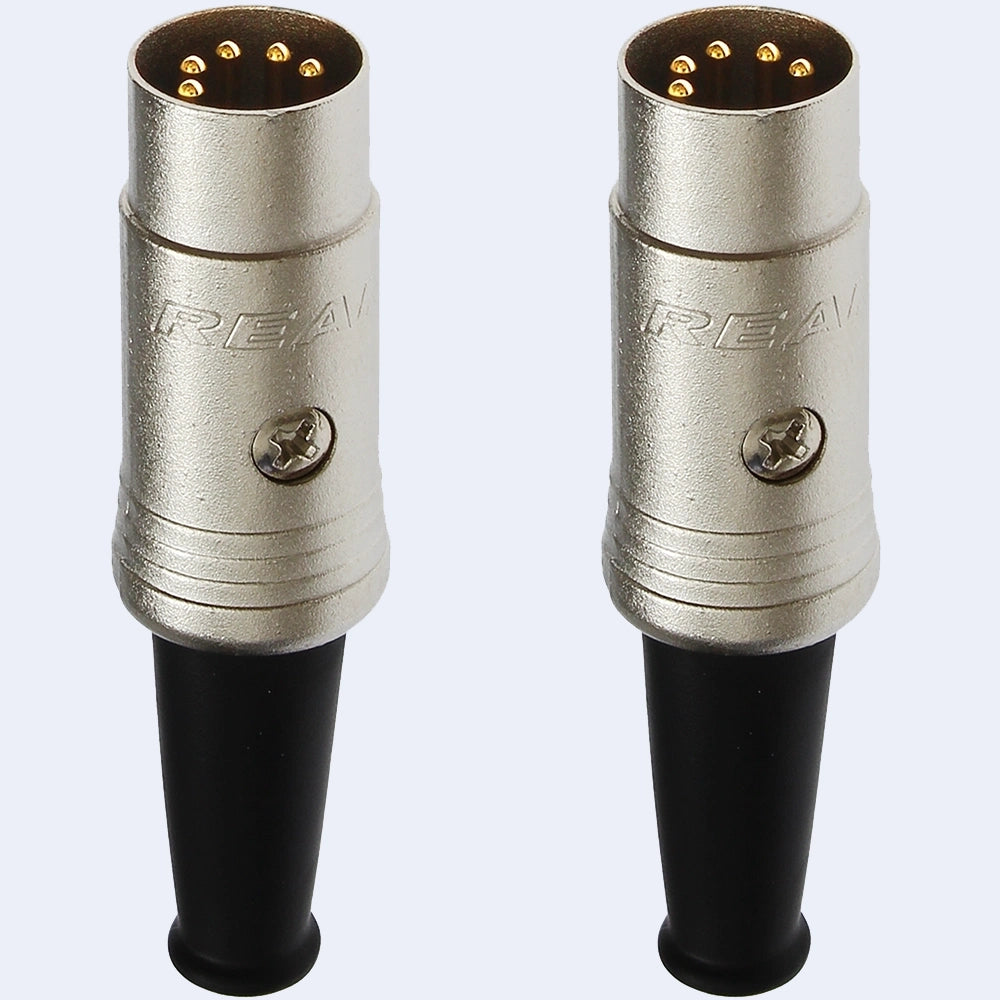

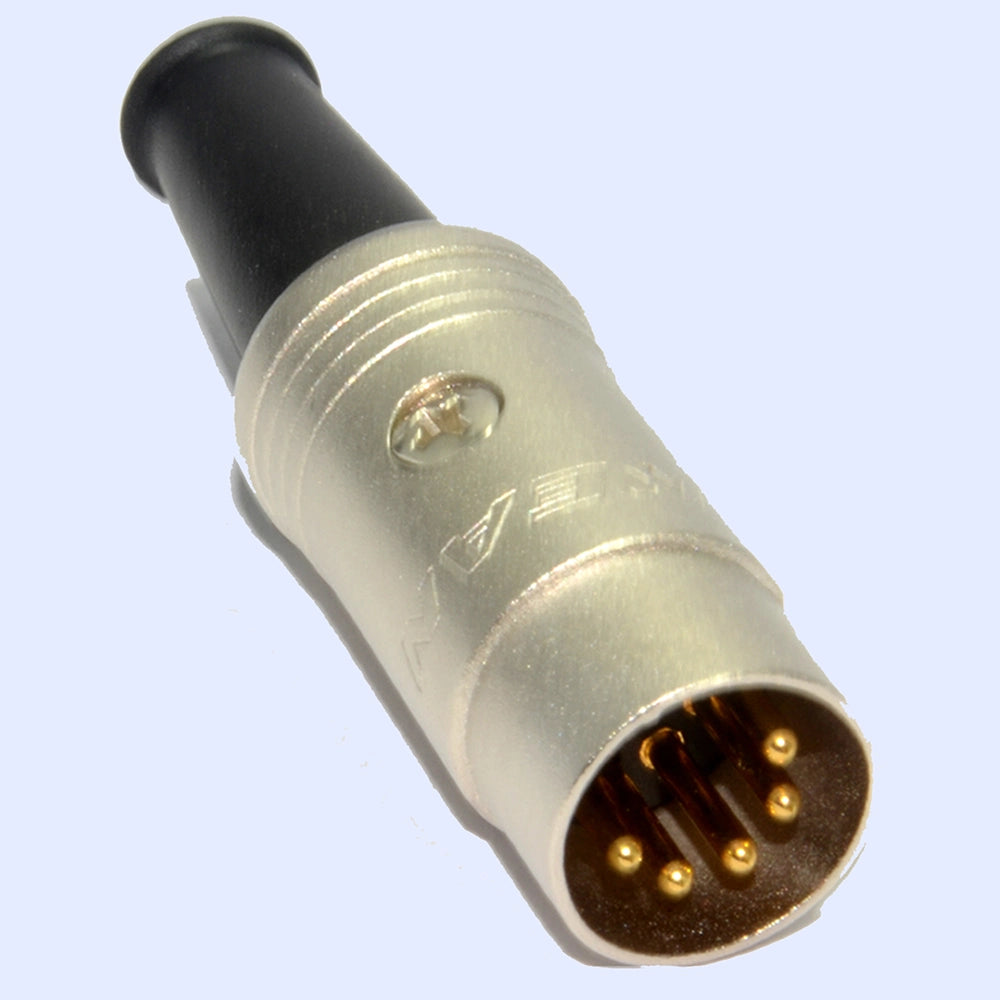

• REAN NEUTRIK 5 PIN DIN PLUGS - High Quality Din Plug with Standard 180° Pin configuration
• GOLD PLATED SOLDER CONTACTS - Numbered spaced connections for accuracy when connecting
• REMOVABLE STRAIN RELIEF - Accepts up to 6mm cables or 8mm with strain relief removed
• STANDARD MIDI DIN PLUG - Metal Body measures 33mm x 15mm with a standard MIDI type 13.2mm plug
• STEREO MONO OR SIGNAL - Can be wired for Stereo Mono or Signal control according to your needs

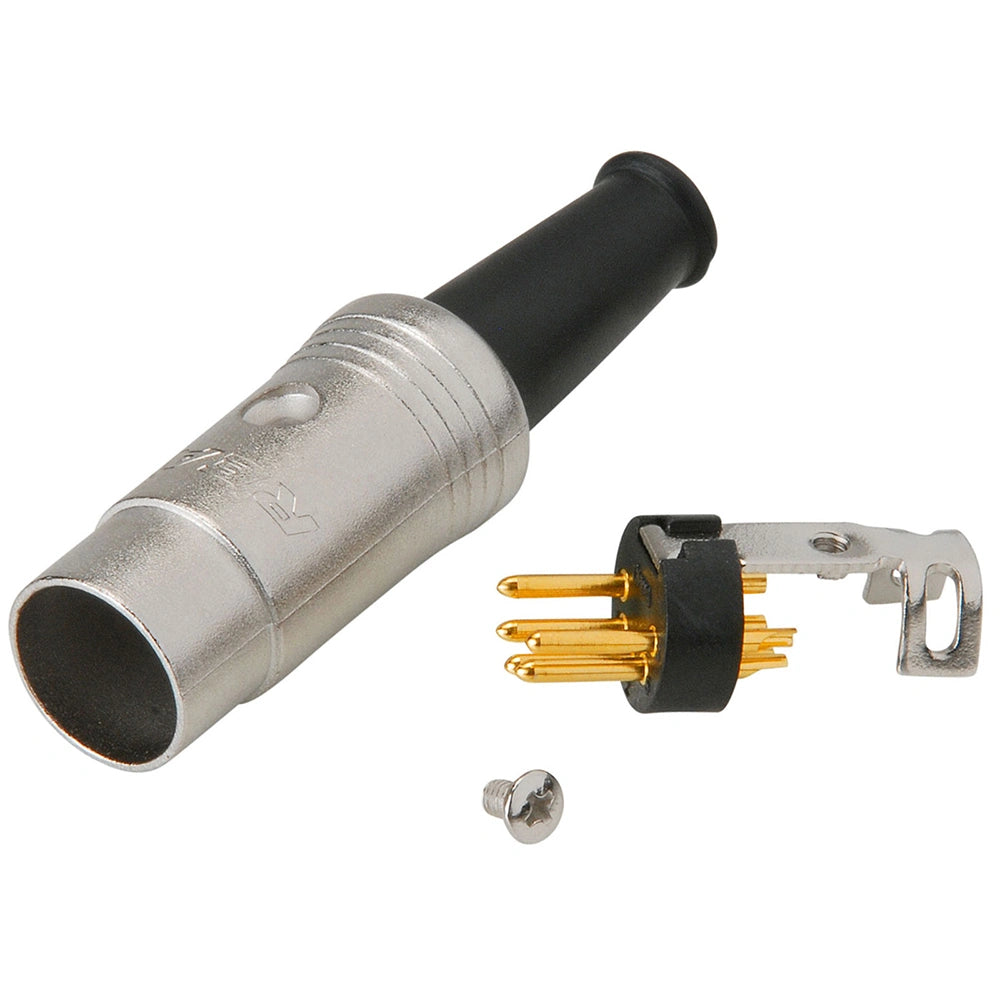

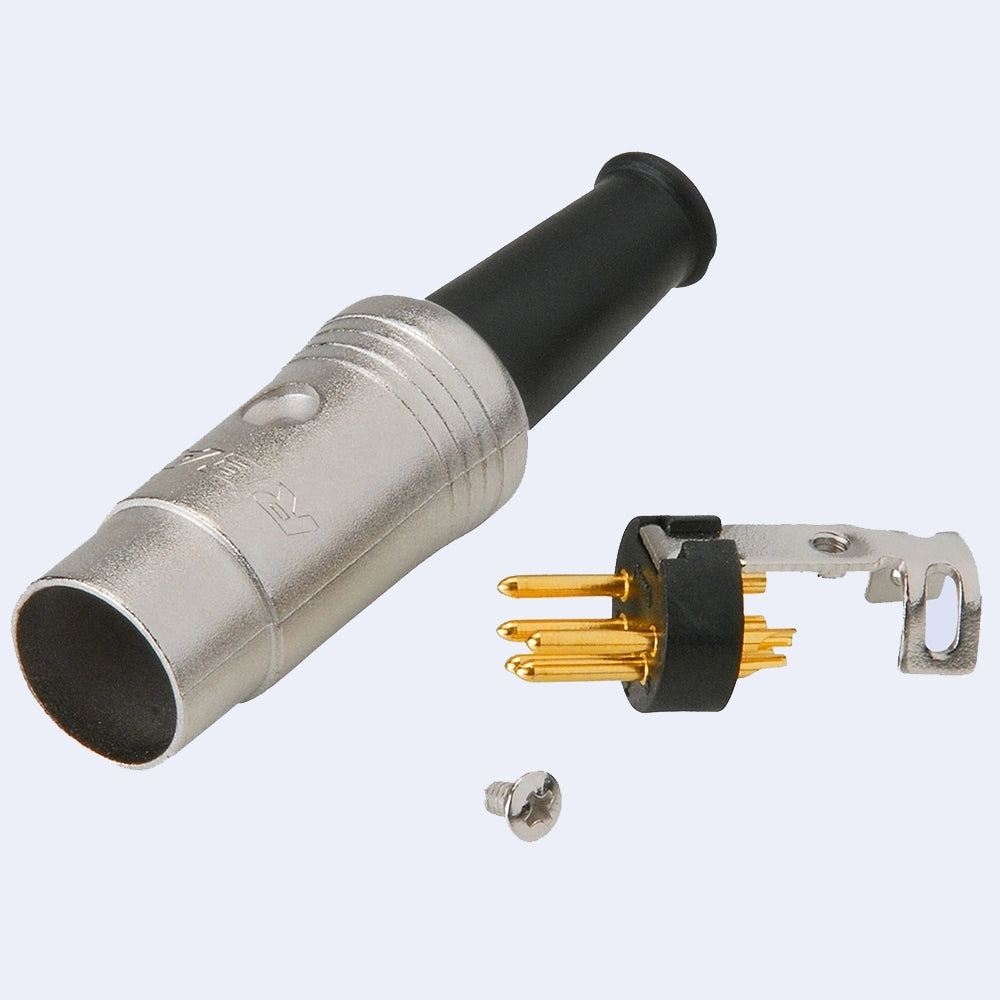

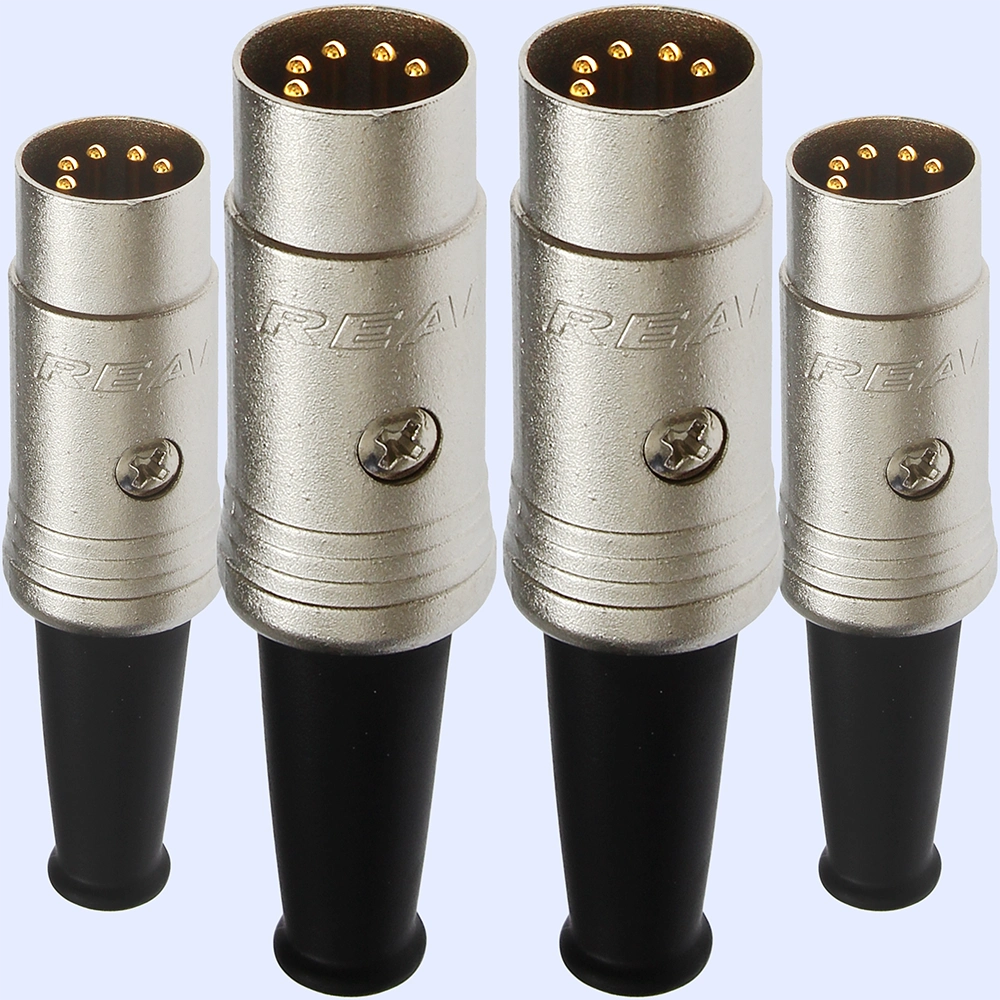

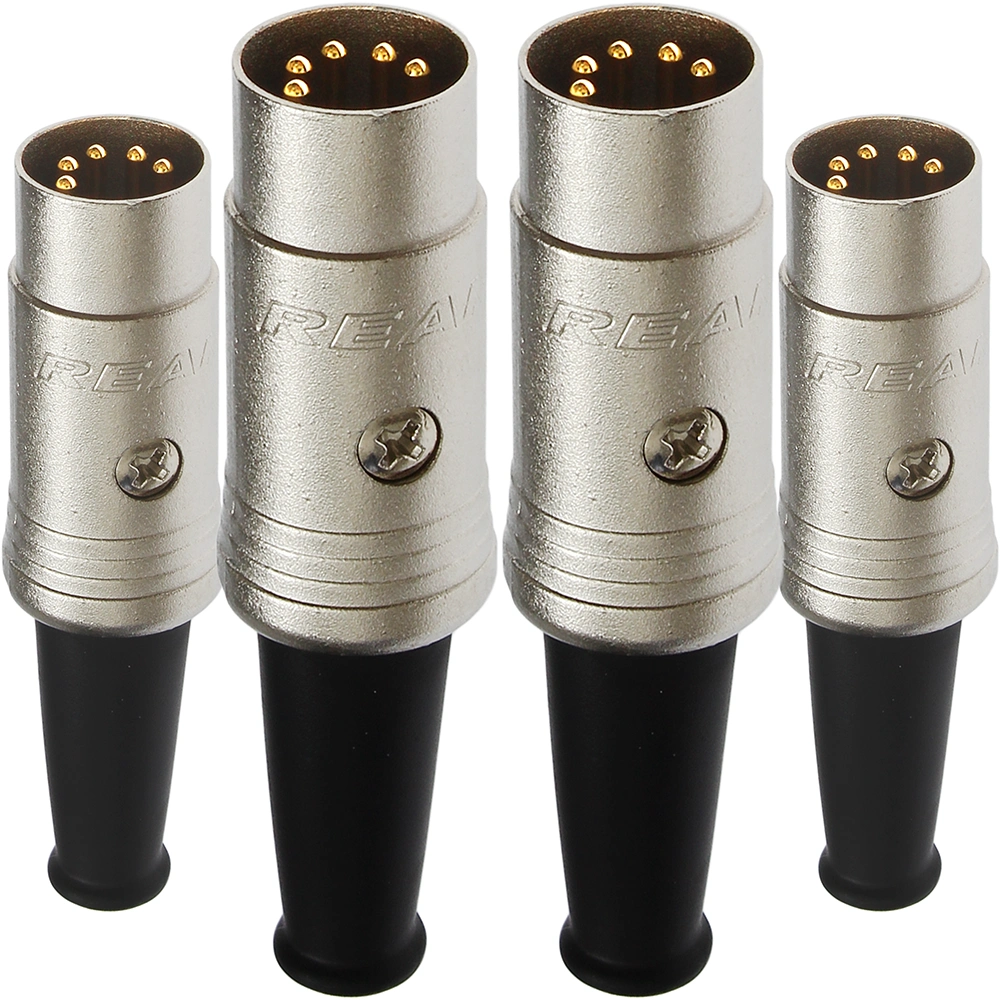

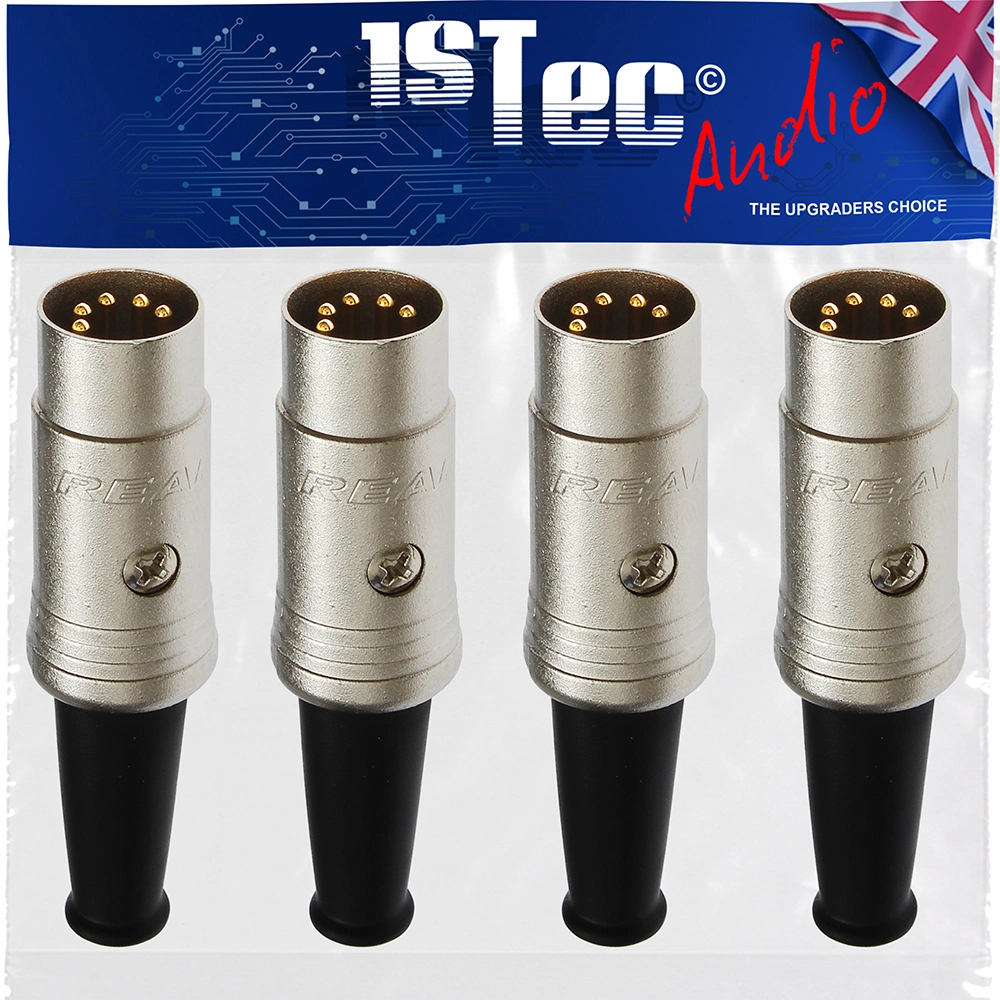

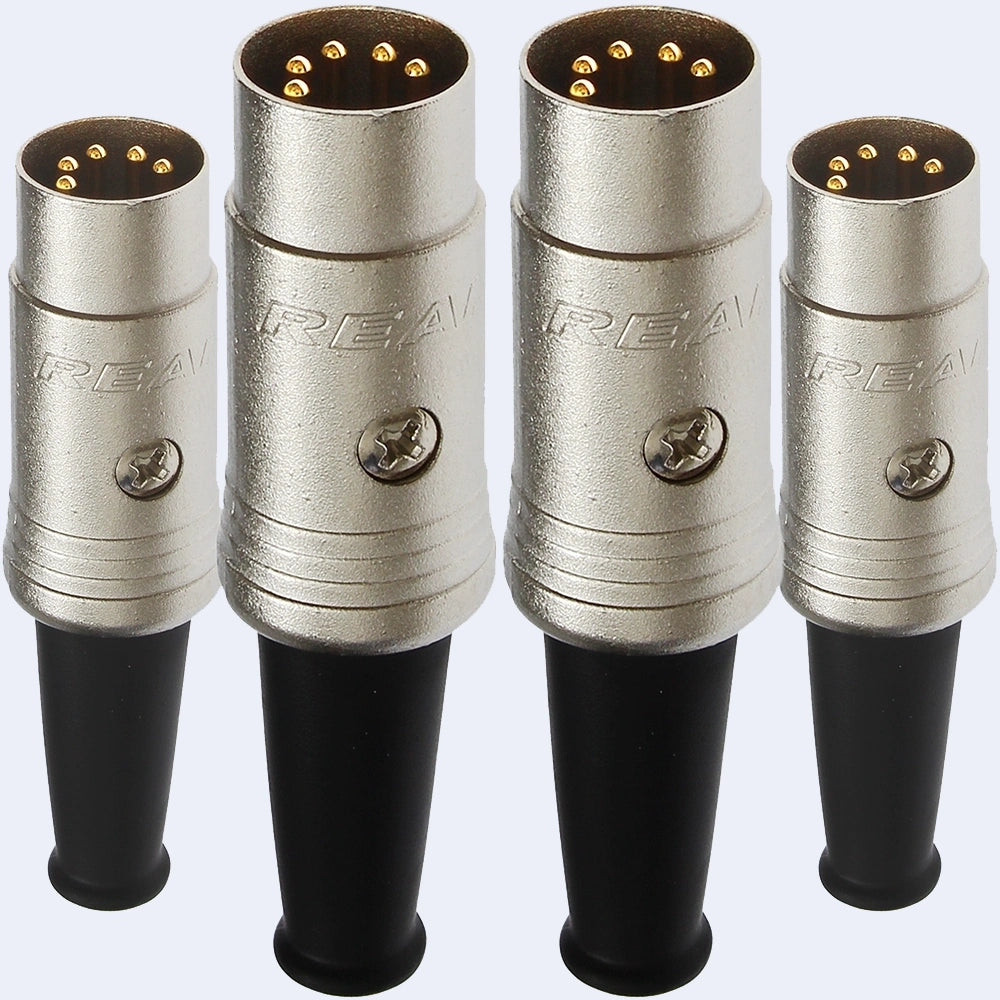

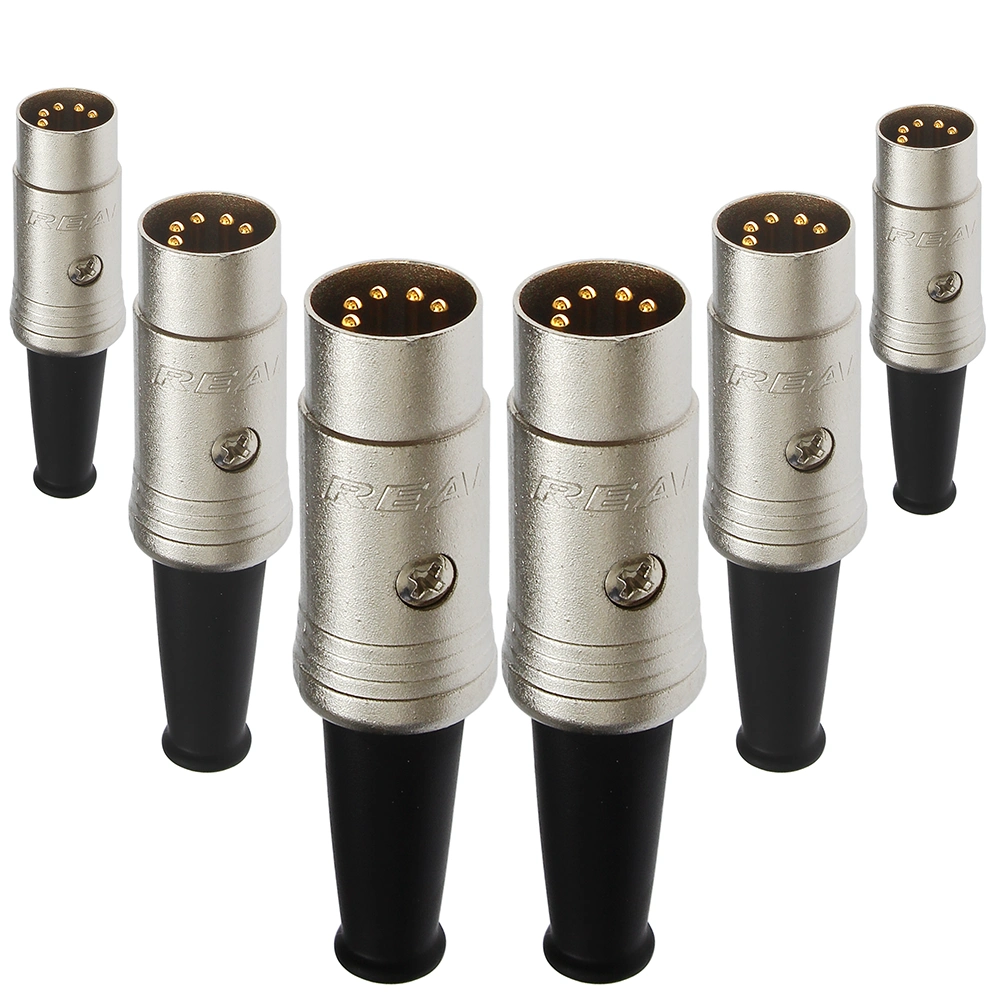

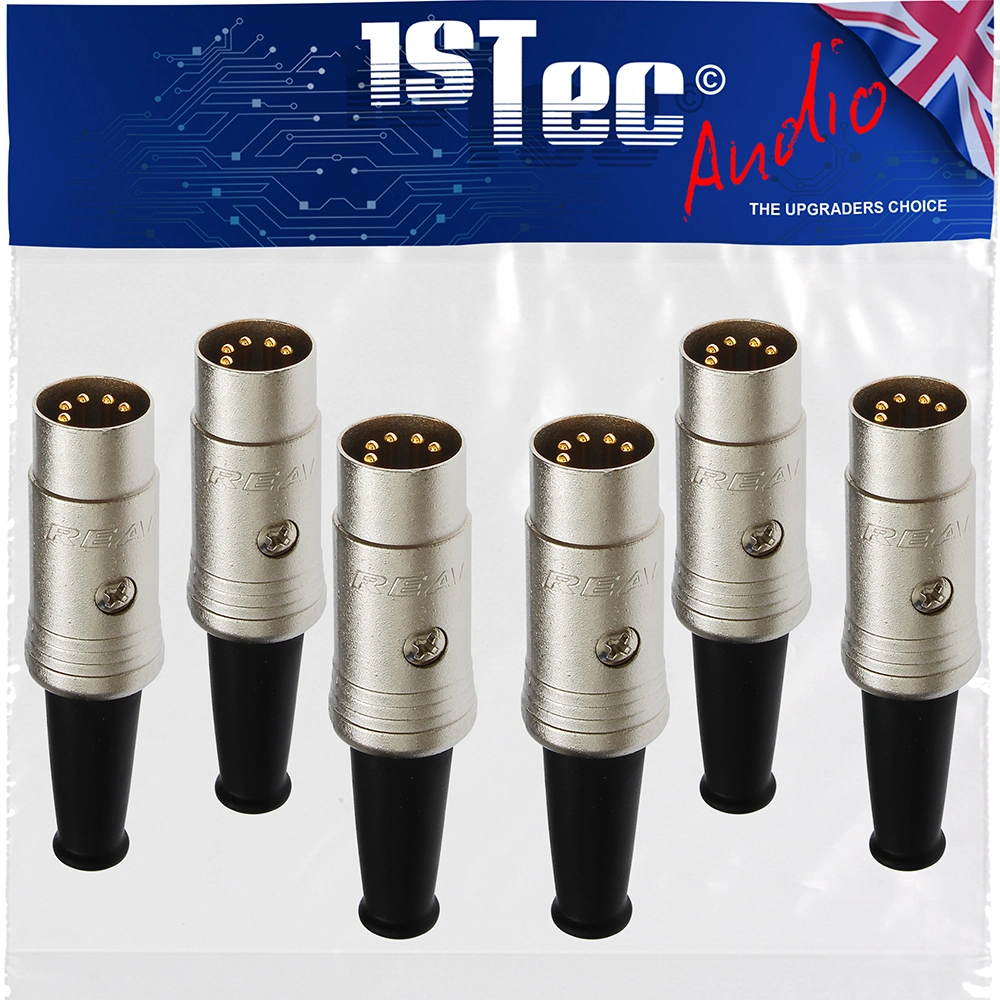

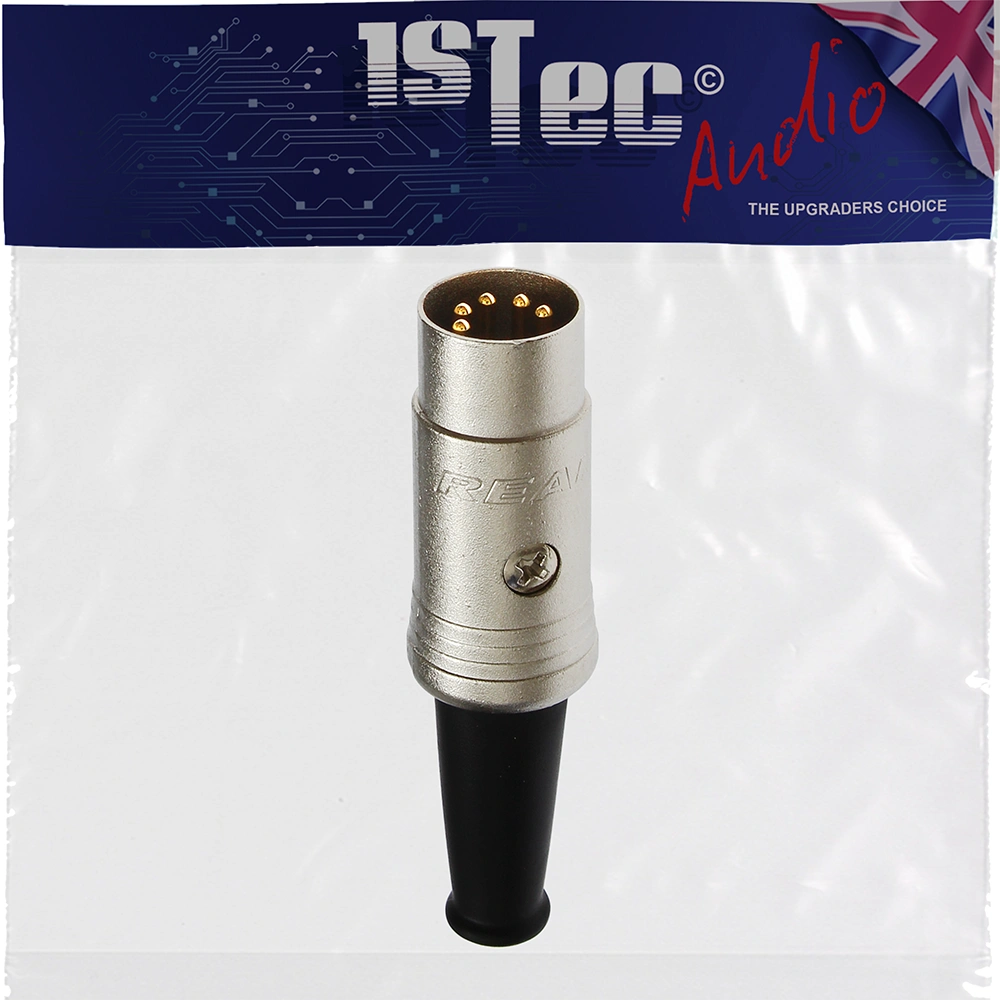

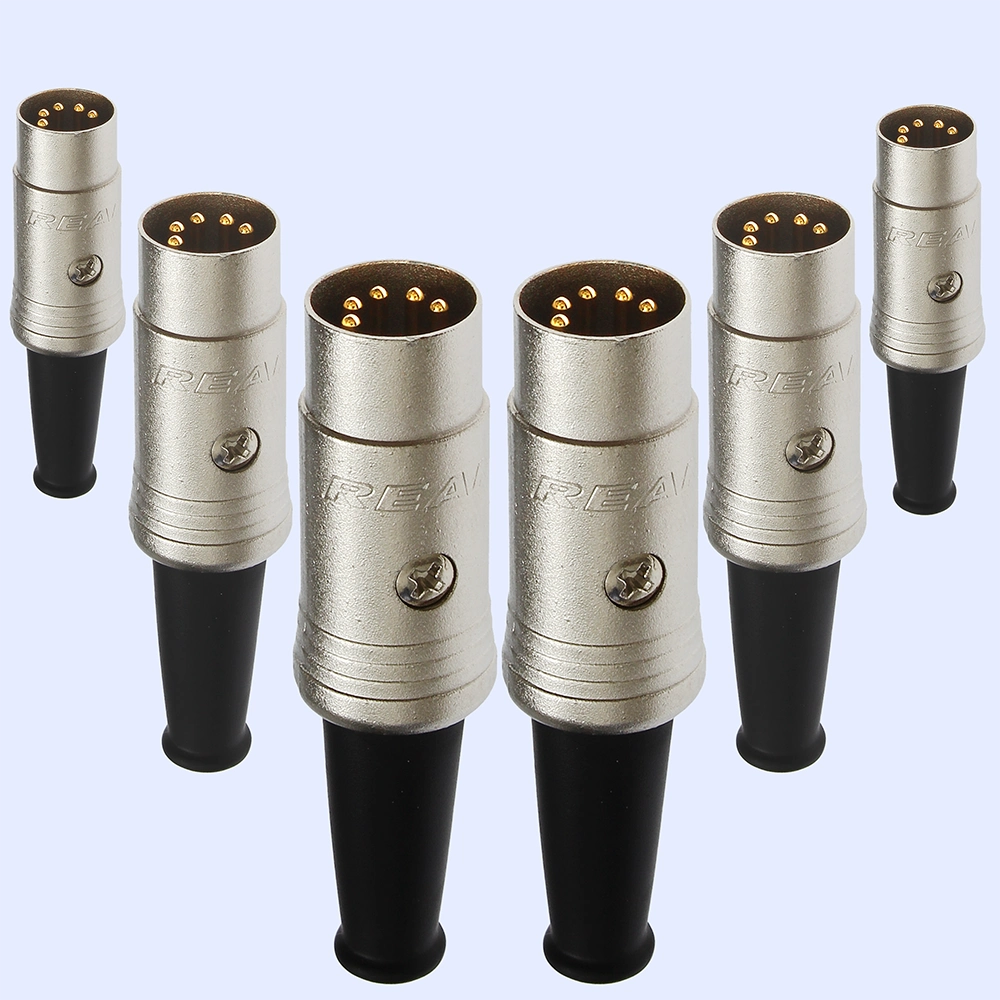

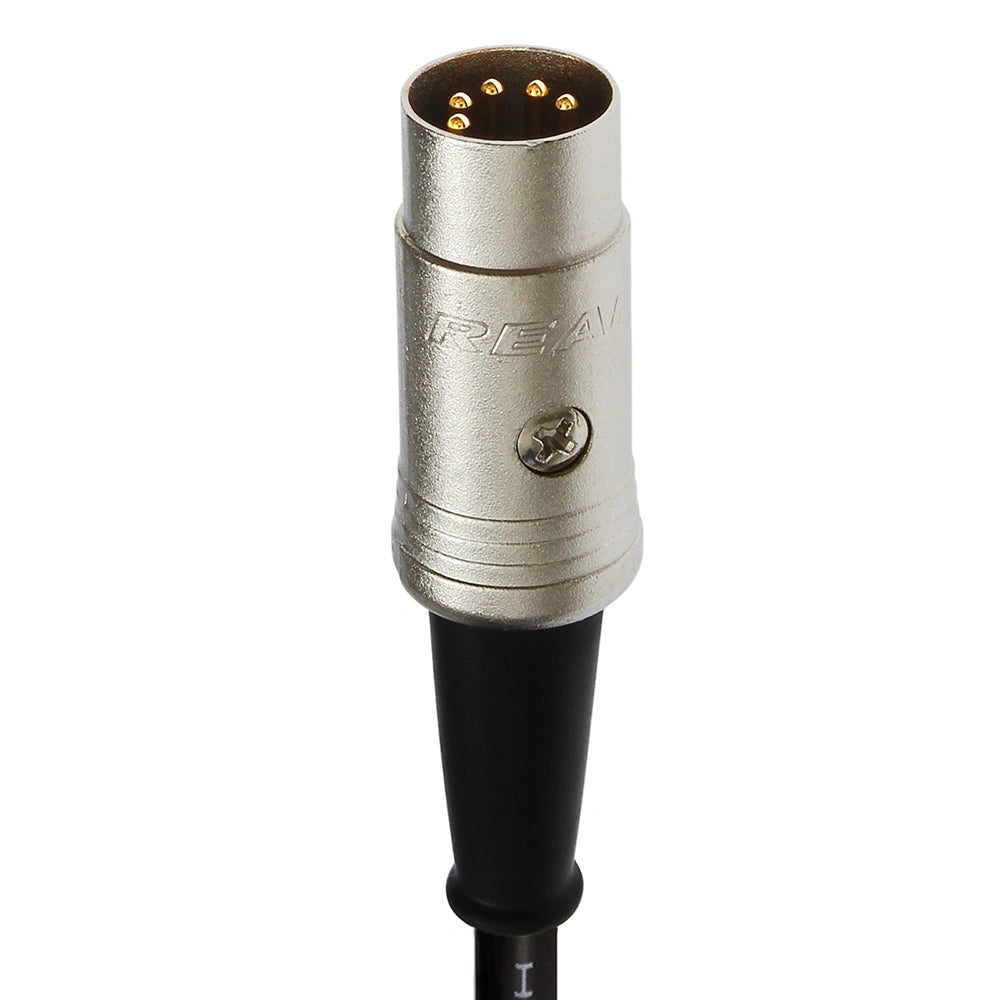

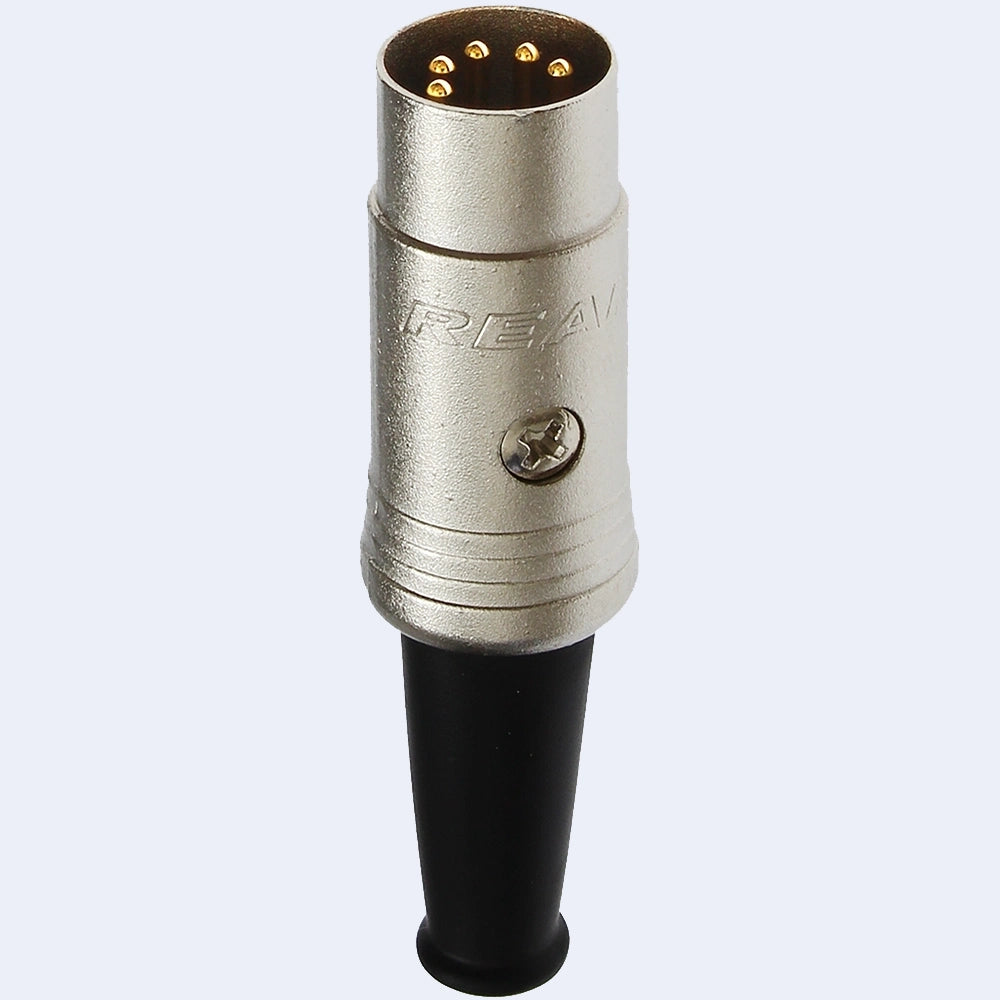

Details: 180° 5 PIN DIN PLUG WITH GOLD CONTACTS High Quality REAN Neutrik 5 Pin Din connectors with gold plated contacts suitable for a wide variety of Audio, MiDi or other Signal Control applications. 180° 5 pin din sockets are found on a wide variety of High Quality older audio devices including: Quad, Naim, A&R, Sugden, B&O, Leak, Rotel, Akai, Creek stage and many others. These can be used with Bang & Olufsen equipment as the 5 pin din plugs fits normally into the 7 pin sockets. Pins 6 and 7 were only ever used for communication between B&O devices. These are the standard size din plugs with the metal body measuring 33mm x 15mm with a standard MIDI type 13.2mm plug. They accept cables up to 6mm or 8mm with the rubber strain relief removed.  The contacts are numbered and have prepared cut-out holes that makes soldering on to them an easy job. The removable connector section has a locating slot to correspond with the metal body as well as a clip-on metal cable clamp with a fixing screw which helps to ensure that assembly is simple and error free. The metal body along with the gold plated contacts make for a durable connector that can be used time and time again producing the same great results that you would expect from a High Quality Neutrik product.

Binding: Electronics
